RMRRF Top Duel Dragster Axel Shafts

CNC Cut Combo Axel Shafts for RMRRF Top Fuel Dragster Designed by Scott/Edge of 3D

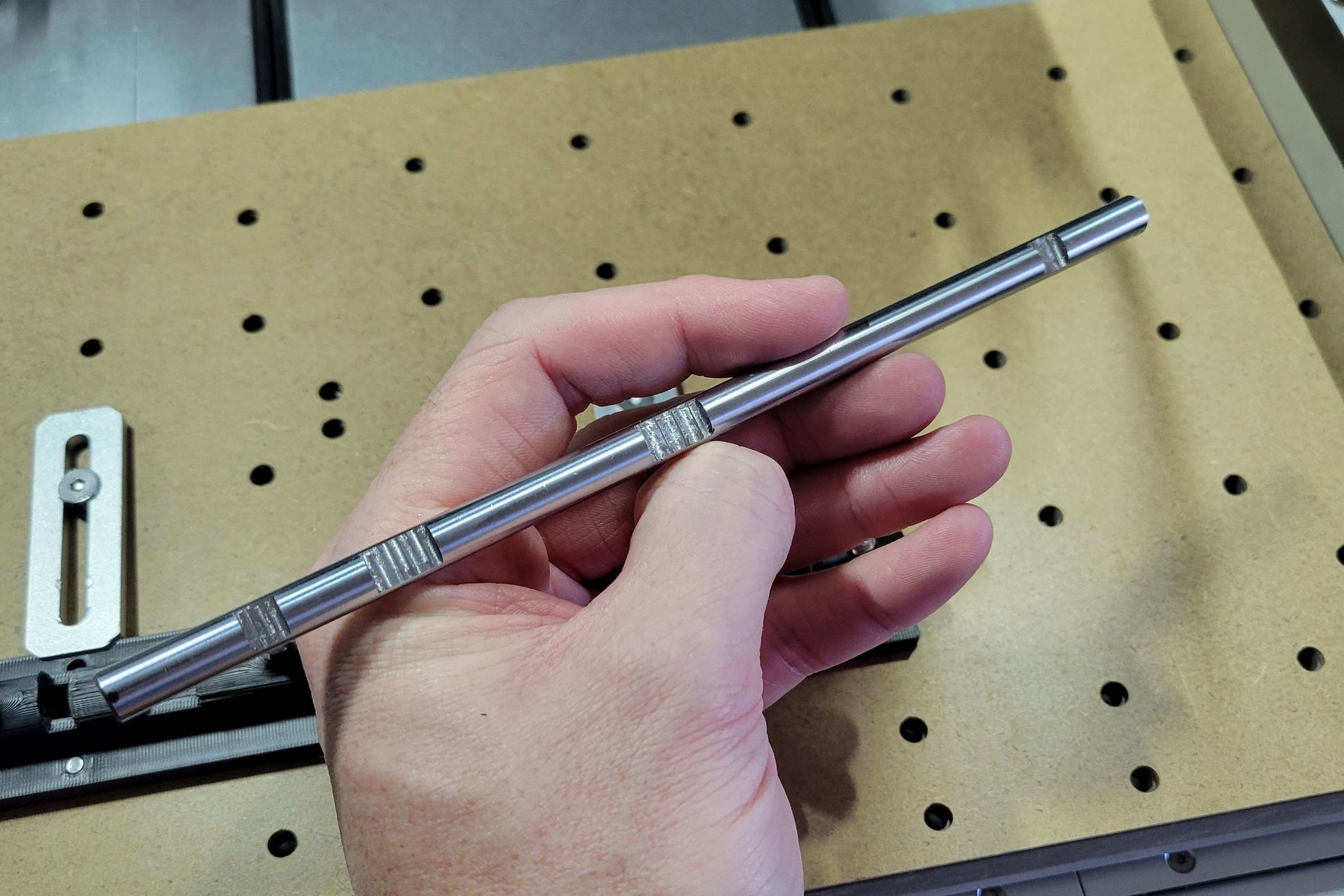

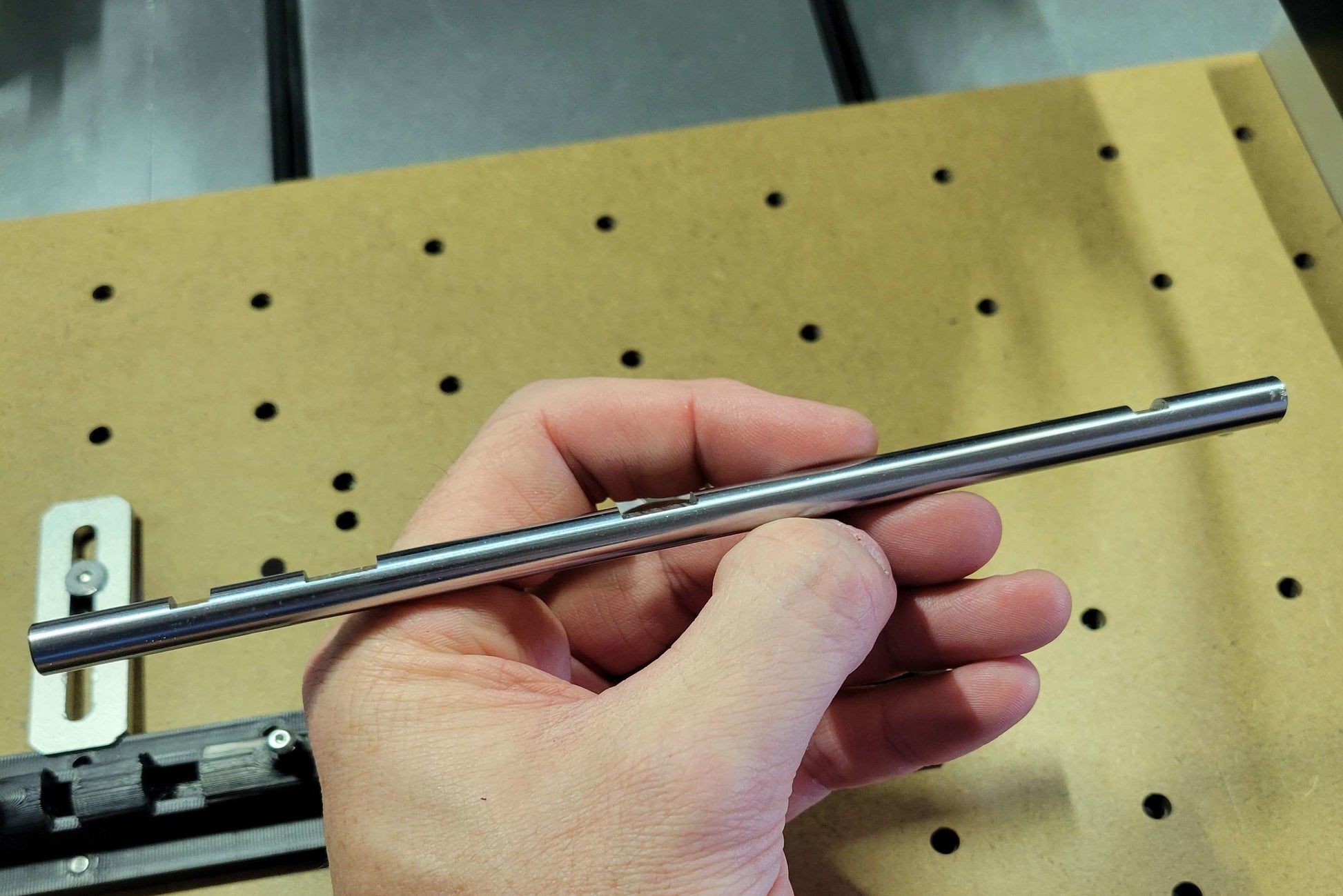

Shafts are cut from ~200mm length 8mm Linear Rod, they are Based on the Geared Shaft option with the Belted Pulley cut out added, each cut has been enlarged by ~1mm in width and cut 2mm into the rod for a strong flat surface for gub screws to attach.

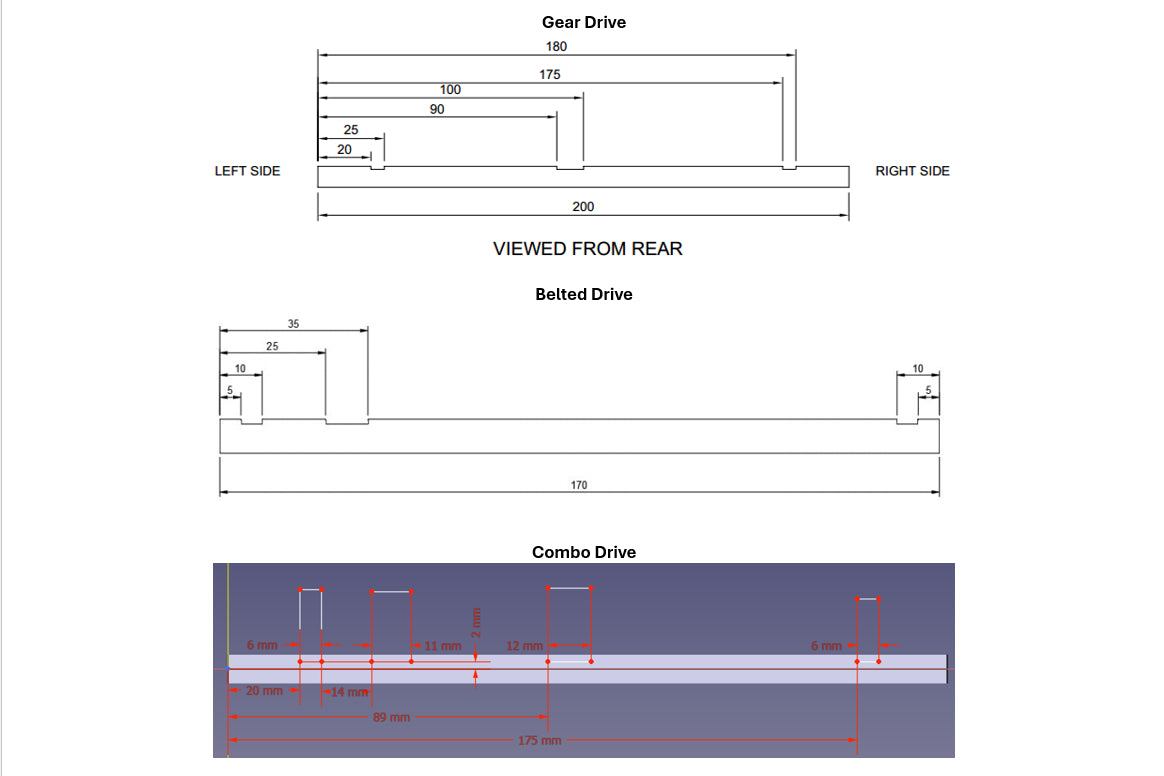

Spacing:
Centering Shaft ~165mm from outer Frame to Axel end on each side
Flange for Wheels ~15mm

Make sure the Printed Wheel Hubs you choose will work with the Shaft or has a 8mm hole for the rod to center the wheel hub


Build information and files
https://youtu.be/xnE1xDeFV7Y?si=9sFFU7aB0j3pJw-H

Files on Makerworld (Mods on Printables as well)
https://makerworld.com/en/models/179685-top-fuel-dragster
